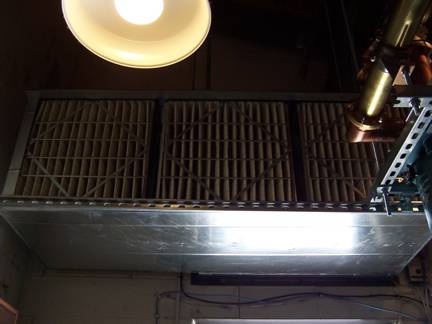

The HVAC guys put in a new vent. We need a lot of airflow in the room to keep the equipment cool. We added a new blower and some other items to keep the room cool.

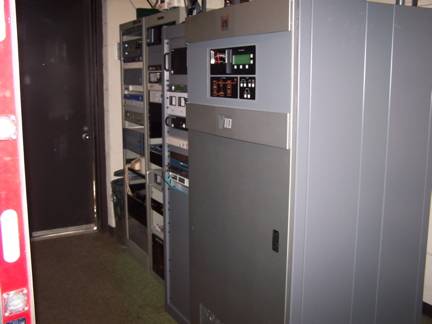

Here’s a shot of the equipment looking at the front door.

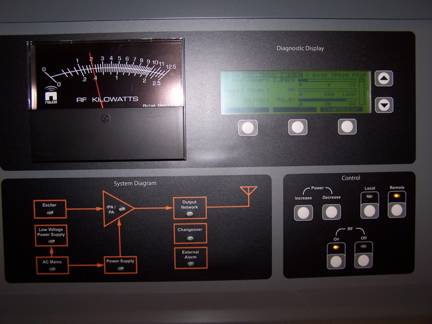

Here is the front panel of the HD transmitter. Normally this will put out 2.10KW of HD, and in backup mode 11KW of analog power.

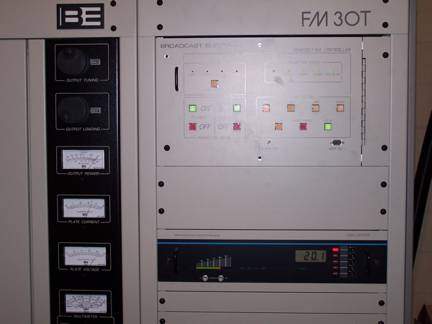

This is the analog transmitter. This is putting out about 23KW of power.

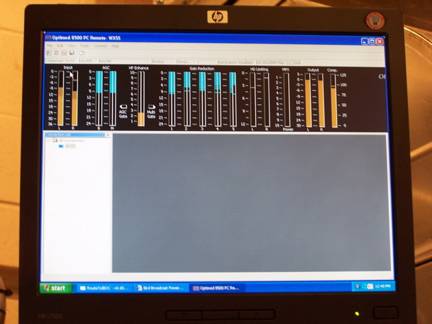

This is the server screen again, showing the audio processing.

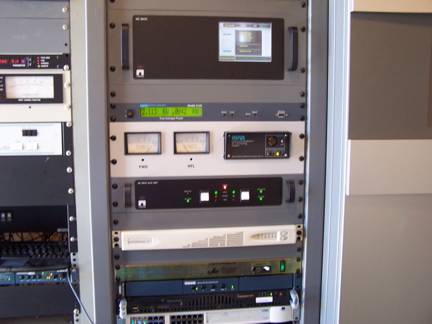

Finally, this is the IBOC rack again. At the top, you’ll see the IBOC generator, which is basically a computer running Linux. It encodes the audio for HD, and sends it off to the transmitter.
